RADIAL FLUX

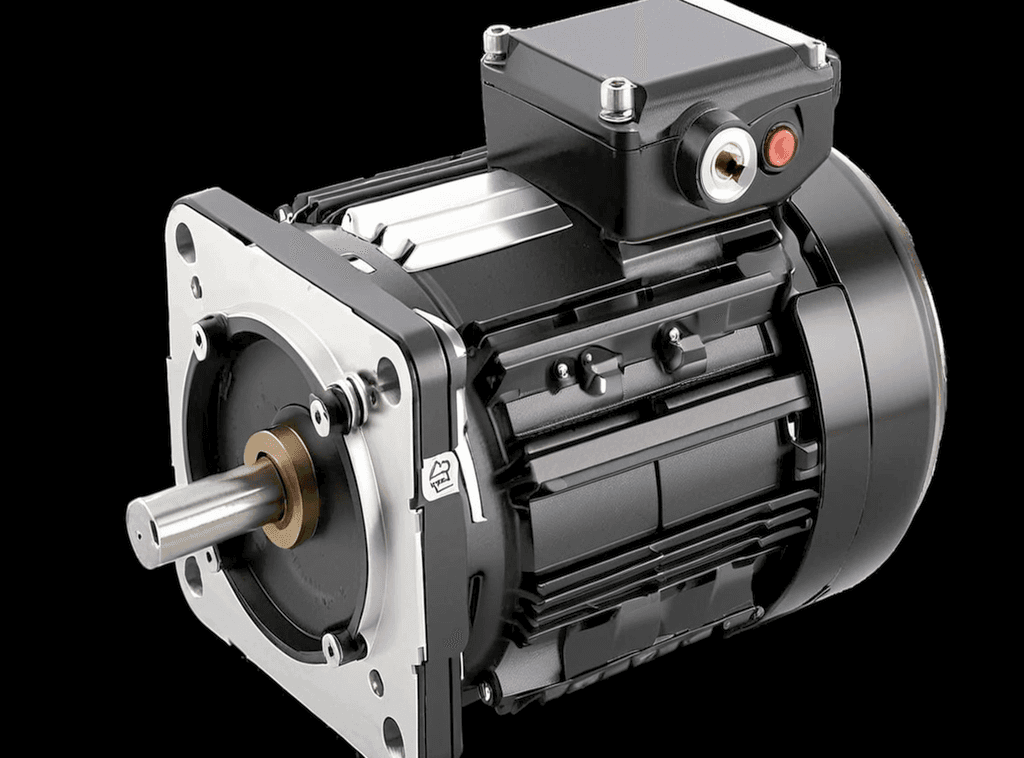

Our Radial Flux Motors
Quantum Motors' radial flux technology utilizes an advanced, low-magnetic-resistance patented innovation. The radial high-speed motor from Quantum Motors achieves up to 96% efficiency in the high-speed range and reaches 90% efficiency at a low speed of 400 RPM. Its volume and weight are just 1/3 that of conventional asynchronous motors, delivering superior performance in a compact design. The power of a single radial flux motor ranges from 2 kW to 10 MW, and both power and speed can be customized.
QM4500R
The power of a single motor ranges from 75 Kw to 450 Kw, and the speed of a single motor ranges from 1,000 RPM to 200,000 RPM. Both power and speed can be customized,The following parameters are typical specifications.
SPECIFICATIONS:
• Y Power: (kw) 450
• △ Power: (kw) 450
• Torque: (N.m) 2865
• Polar logarithm: 6
• Rated Speed: (Rpm) 1500
• Peak speed: (Rpm) 3000
• Protection: IP65 (can request higher protection)
• Working System: S1
• Energy Efficiency: IE5
• Over 90% efficiency range : 400RPM-3000RPM
• Voltage(VAC): 480V (can customize)
QM0037R
The power of a single motor ranges from 10w to 3.7 Kw, and the speed of a single motor ranges from 1,000 RPM to 200,000 RPM. Both power and speed can be customized,The following parameters are typical specifications.
SPECIFICATIONS:
• Y Power: (kw) 3.7
• △ Power: (kw) 7.5
• Torque: (N.m) 24
• Polar logarithm: 4
• Rated Speed: (Rpm) 1500
• Peak speed: (Rpm) 3000
• Protection: IP65 (can request higher protection)
• Working System: S1
• Energy Efficiency: IE5
• Over 90% efficiency range : 400RPM-300RPM
• Voltage(VAC): 480V (can customize)
QM0075R
The power of a single motor ranges from 3.7W to 75Kw, and the speed of a single motor ranges from 1,000 RPM to 200,000 RPM. Both power and speed can be customized,The following parameters are typical specifications.
SPECIFICATIONS:
• Y Power: (kw) 120
• △ Power: (kw) 120
• Torque: (N.m) 800
• Polar logarithm: 6
• Rated Speed: (Rpm) 1500
• Peak speed: (Rpm) 3000
• Protection: IP65 (can request higher protection)
• Working System: S1
• Energy Efficiency: IE5
• Over 90% efficiency range : 400RPM-600RPM
• Voltage(VAC): 480V (can customize)
